LIEX 710 Marine Fog Signals: 1/2 Mile and 2 Mile
Wet Tech Energy supplies LIEX 710 marine fog signals. We do not manufacture these horns, and we do not install them. The two models on this page are the LIEX 710/051 1/2-mile fog signal and the LIEX 710/22 2-mile fog signal. Both are FM-approved electronic marine fog signals, and both are U.S. Coast Guard approved fog horns.
They are used on offshore platforms, drilling rigs, offshore wind farms, CALM buoys and FPSOs — that list is already on the live page. If a project also needs a navigational light or a navigational buoy, those are separate products we already publish; the fog signal can be synchronized with other horns or lights, or with a centralized master coder, through the remote terminals described in the specifications.
Both models resonate at approximately 670 Hz (listed as 670 Hz / 660 Hz), a frequency chosen for range rating under both U.S. Coast Guard and IALA criteria, with omnidirectional audio output. Control electronics are microprocessor-based. Remote control terminals accept a fog detector, a remote coder, or an “at will” switch. With a fog detector, the horn sounds automatically in low visibility and stays silent otherwise. A two-hour temporary silence control lets technicians work; the horn returns to its designated code after the time-out.
The LIEX 710/051 is a one-emitter system, U.S. Coast Guard approved for a 1/2-mile range, with 9.5 W input to the emitter. The LIEX 710/22 is a two-emitter system, U.S. Coast Guard approved for a 2-mile range, with 110.3 W input to the emitter. Both use marine-grade cast aluminum housings, accept 10.5–30 VDC or 120 or 230 VAC (other voltages on request), and are rated IP-66 and NEMA-4X. Full dimensions, weights, mounting, and power figures stay in the specification tables already on the page.
Both are FM Approved: NI/I/2/BCD/T4 and NI/I/2/IIB+H2/T4, −25 °C ≤ Ta ≤ +55 °C. ATEX or IECEx Zone 1 and 2 versions are also available. All values are subject to change without notice, as the live page already states.
Wet Tech Energy is a buoy manufacturer in Maurice, Louisiana, founded in 1999. We supply these fog signals alongside the navigational lights and navigational buoys we already publish.

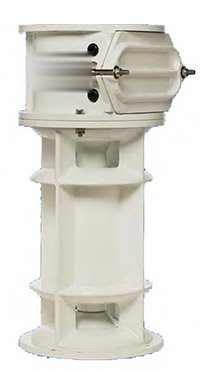

LIEX 710/051 1/2-Mile Fog Signal
A 1 LIEX 710 emitter system, U.S. Coast Guard approved for 1/2 mile range with 9.5 W input to the emitter. FM Approved.

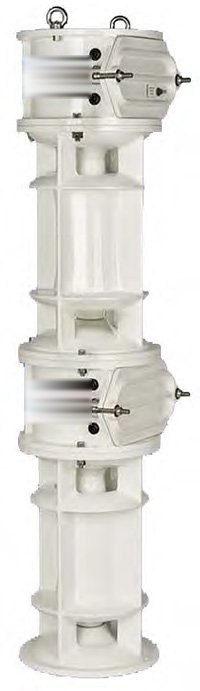

LIEX 710/22 2-Mile Fog Signal
A 2 LIEX 710 emitter system, U.S. Coast Guard approved for 2 mile range with 110.3 W input to the emitter. FM Approved.
Fog Signal Features
- Resonates at approximately 670 Hz, a frequency chosen for range rating under both U.S. Coast Guard and IALA criteria
- Omnidirectional audio output
- Microprocessor-based control electronics
- Remote control terminals for a fog detector, a remote coder or an “at will” switch. With a fog detector, the horn sounds automatically in low visibility and stays silent otherwise
- Remote code selector terminals for changing the sounding rhythm, and terminals for synchronizing with other horns or lights (or a centralized master coder)
- 2-hour temporary silence control for technicians; the horn returns to its designated code after the time-out
LIEX 710 Fog Signal Specifications
| Specification | LIEX 710/051 (1/2 mile) | LIEX 710/22 (2 mile) |
|---|---|---|
| Nominal range | 1/2 mile | 2 mile |
| Emitters | 1 x LIEX 710 | 2 x LIEX 710 |
| Frequency | 670 Hz / 660 Hz | 670 Hz / 660 Hz |
| Height | 667 mm (26-1/4 in) | 1333.5 mm (52.5 in) |
| Diameter | 302 mm (11-7/8 in) | 302 mm (11-7/8 in) |
| Weight | 32 kg (70 lb) | 63 kg (140 lb) |
| Shipping weight | 45 kg (100 lb) | 91 kg (200 lb) |
| Mounting | (4) 11 mm (7/16 in) holes on a 280 mm (11 in) B.C. | (4) 11 mm (7/16 in) holes on a 280 mm (11 in) B.C. |
| Housing | Marine grade cast aluminum | Marine grade cast aluminum |
| Input voltage | 10.5-30 VDC; 120 or 230 VAC (other voltages on request) | 10.5-30 VDC; 120 or 230 VAC (other voltages on request) |
| Input power to horn | 16 W | 140.0 W |
| Output power to drivers | 9.5 W | 110.3 W |
| Operating temperature | -25 °C to 55 °C | -25 °C to 55 °C |
| Corrosion protection | NEMA-4X | NEMA-4X |
| Ingress rating | IP-66 | IP-66 |
| Certificates | FM Approved: NI/I/2/BCD/T4; -25 °C ≤ Ta ≤ +55 °C NI/I/2/IIB+H2/T4; -25 °C ≤ Ta ≤ +55 °C ATEX or IECEx Zone 1 & 2 versions also available | FM Approved: NI/I/2/BCD/T4; -25 °C ≤ Ta ≤ +55 °C NI/I/2/IIB+H2/T4; -25 °C ≤ Ta ≤ +55 °C ATEX or IECEx Zone 1 & 2 versions also available |
LIEX 710/051 1/2-Mile
- Nominal range
- 1/2 mile
- Emitters
- 1 x LIEX 710
- Frequency
- 670 Hz / 660 Hz
- Height
- 667 mm (26-1/4 in)
- Diameter
- 302 mm (11-7/8 in)
- Weight
- 32 kg (70 lb)
- Shipping weight
- 45 kg (100 lb)
- Mounting
- (4) 11 mm (7/16 in) holes on a 280 mm (11 in) B.C.
- Housing
- Marine grade cast aluminum
- Input voltage
- 10.5-30 VDC; 120 or 230 VAC (other voltages on request)
- Input power to horn
- 16 W
- Output power to drivers
- 9.5 W
- Operating temperature
- -25 °C to 55 °C
- Corrosion protection
- NEMA-4X
- Ingress rating
- IP-66
- Certificates
- FM Approved: NI/I/2/BCD/T4; −25 °C ≤ Ta ≤ +55 °C. NI/I/2/IIB+H2/T4; −25 °C ≤ Ta ≤ +55 °C. ATEX or IECEx Zone 1 & 2 versions also available
LIEX 710/22 2-Mile
- Nominal range
- 2 mile
- Emitters
- 2 x LIEX 710
- Frequency
- 670 Hz / 660 Hz
- Height
- 1333.5 mm (52.5 in)
- Diameter
- 302 mm (11-7/8 in)
- Weight
- 63 kg (140 lb)
- Shipping weight
- 91 kg (200 lb)
- Mounting
- (4) 11 mm (7/16 in) holes on a 280 mm (11 in) B.C.
- Housing
- Marine grade cast aluminum
- Input voltage
- 10.5-30 VDC; 120 or 230 VAC (other voltages on request)
- Input power to horn
- 140.0 W
- Output power to drivers
- 110.3 W
- Operating temperature
- -25 °C to 55 °C
- Corrosion protection
- NEMA-4X
- Ingress rating
- IP-66
- Certificates
- FM Approved: NI/I/2/BCD/T4; −25 °C ≤ Ta ≤ +55 °C. NI/I/2/IIB+H2/T4; −25 °C ≤ Ta ≤ +55 °C. ATEX or IECEx Zone 1 & 2 versions also available
All values are subject to change without notice.

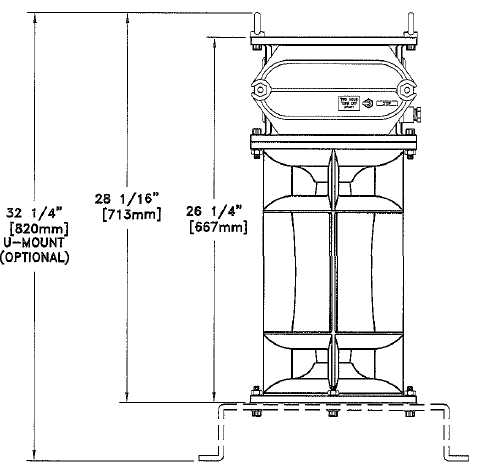

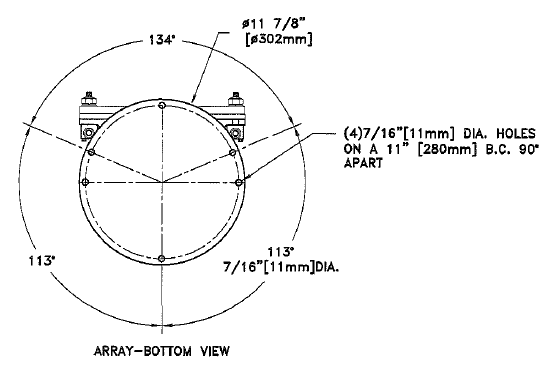

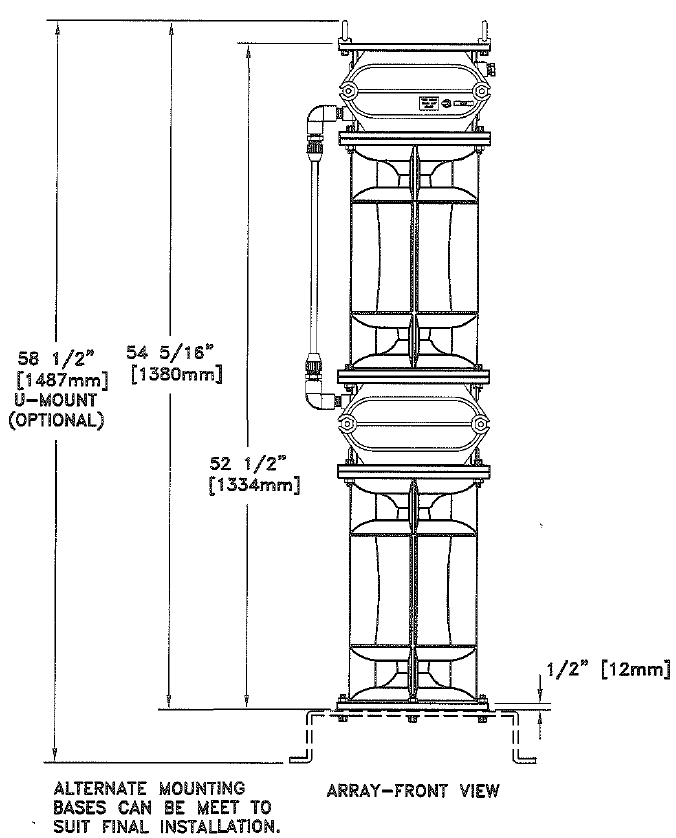

Dimensional Drawings



Fog Signal FAQ
What range do the LIEX 710 fog signals cover?
The LIEX 710/051 is U.S. Coast Guard approved for a 1/2 mile range with one LIEX 710 emitter and 9.5 W input to the emitter. The LIEX 710/22 is U.S. Coast Guard approved for a 2 mile range with two LIEX 710 emitters and 110.3 W input to the emitter.
What frequency do these marine fog horns sound at?
Both models resonate at approximately 670 Hz (listed as 670 Hz / 660 Hz) with omnidirectional audio output.
What power supply do they need?
10.5-30 VDC, or 120 or 230 VAC. Other supply voltages are available on request.
Are they approved for hazardous locations?
Both are FM Approved: NI/I/2/BCD/T4 and NI/I/2/IIB+H2/T4, -25 °C ≤ Ta ≤ +55 °C. ATEX or IECEx Zone 1 & 2 versions are also available.
For a quote, call 337-893-9992 or email sales@wettechenergy.com.
