RS-002 Wire Rope Spooling Unit Rental: 60,000 lb, 120 in Reels

RS-002 is a skid-mounted, mobile hydraulic spooling unit: a reel stand powered by an Isuzu 4JG1T 3.1L turbo diesel hydraulic power unit (HPU), rated 60,000 lb, that takes reels up to 120 in diameter x 92 in wide, with 3 in and 4-1/2 in shafts included. It is built to spool wire rope on or off crane and winch drums for re-reeving and rope changeouts, plus derrick barge, marine and offshore winch work. It holds back tension while spooling. It also handles ROV umbilicals and synthetic rope. Need a reel stand instead? We also rent wire rope A-frames for spooling (not LARS).

Handles spools up to 120 in diameter x 92 in wide.
Capacity: 60,000 lb | Unit size: 158 x 90 x 89 in
Back tension: Yes

Rent the RS-002 for your next rope changeout.

Call 337-893-9992

or email sales@wettechenergy.com

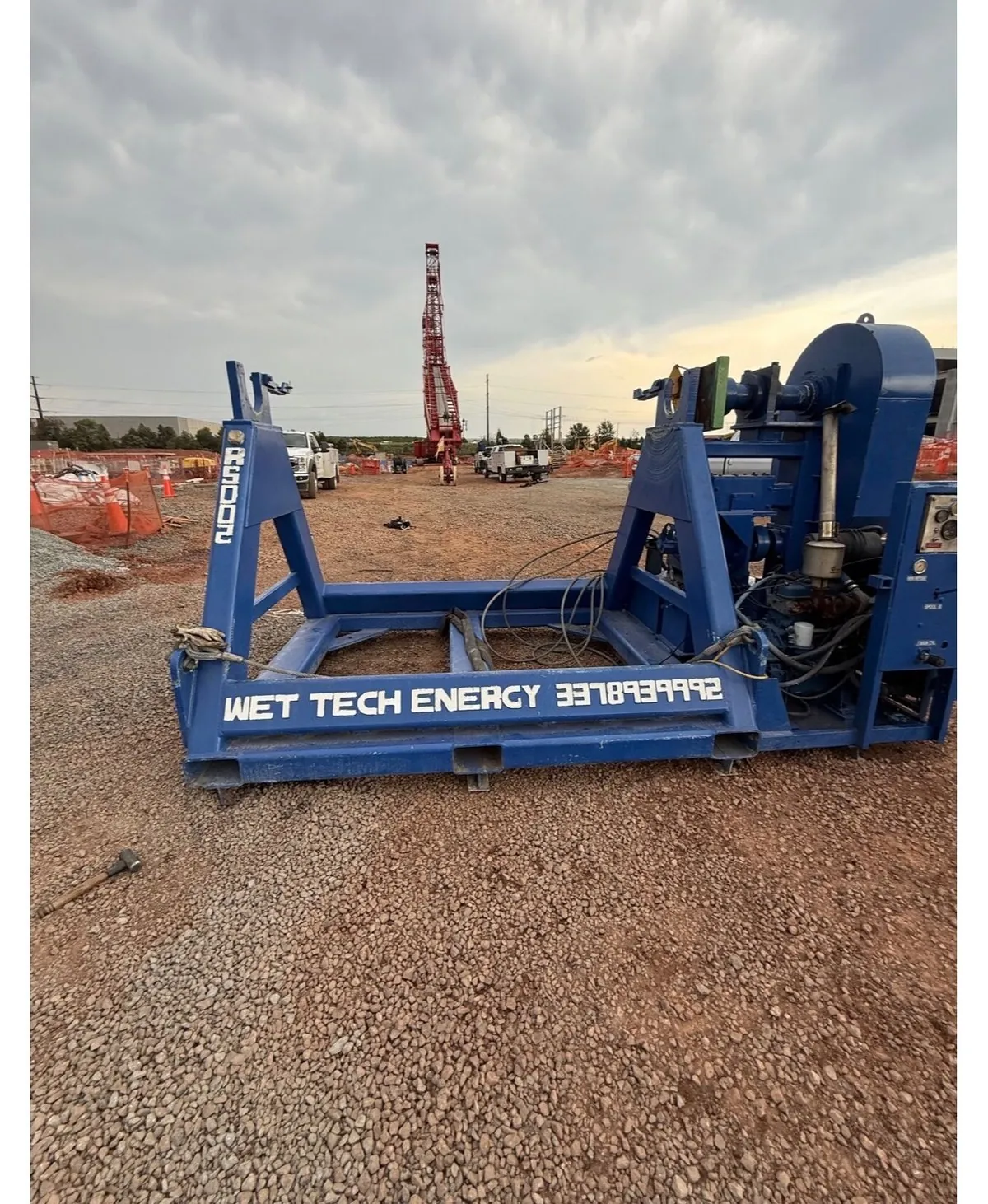

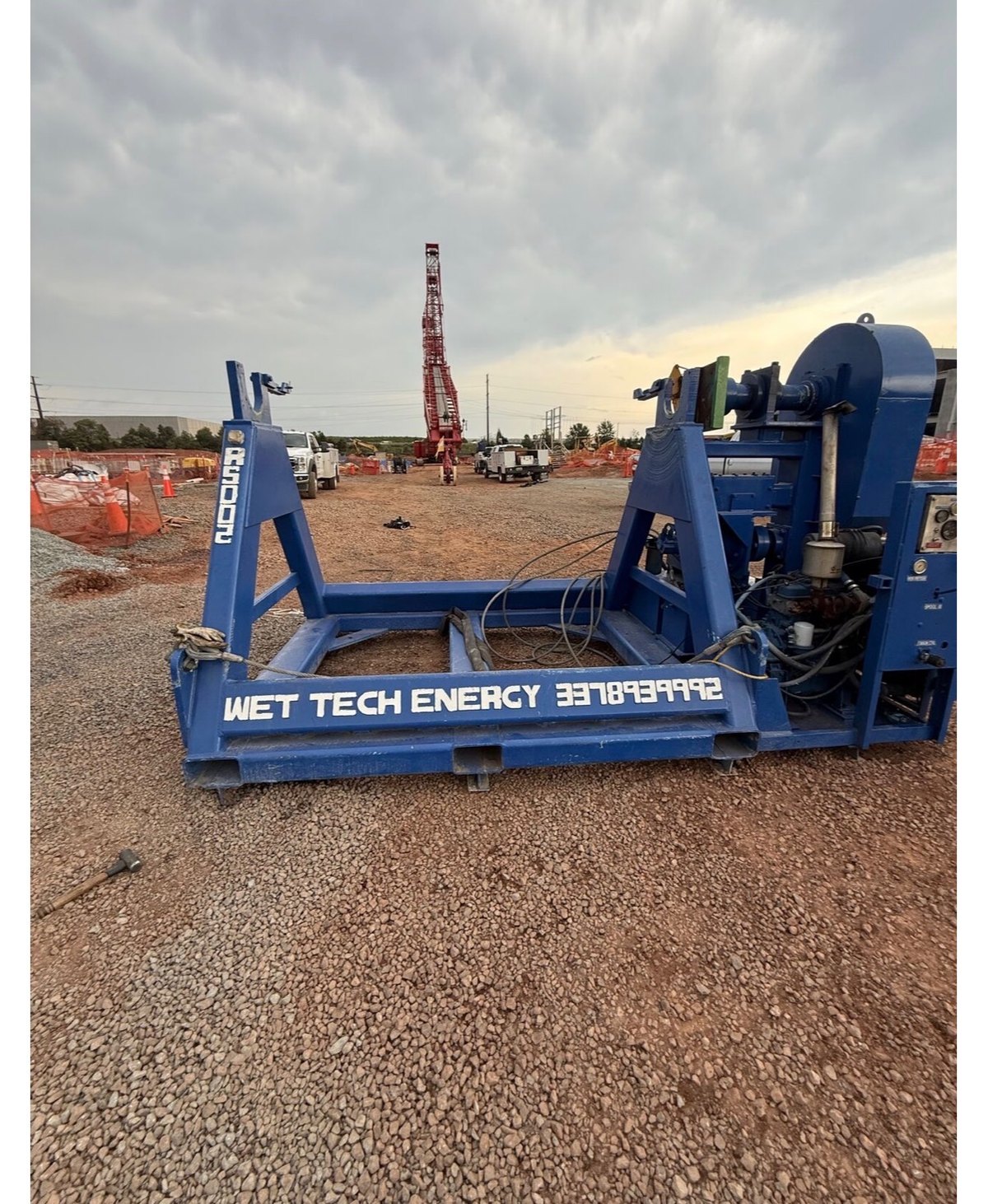

Wet Tech RS-002 spooling unit reel stand set up on gravel at a construction jobsite — Wet Tech RS-002 spooling unit reel stand set up at a construction jobsite.

RS-002 Spooling Unit Specifications

Specification	RS-002
Weight capacity	60,000 lb
Shafts	3 in and 4-1/2 in shafts included
Maximum spool size	120 in diameter x 92 in wide
Engine	Isuzu 4JG1T 3.1L turbo diesel HPU
Pump	Coupled to a 30 gallon pump
Engine kill	Yes
Directional controls	Yes
Controls	Operated at the power unit
Unit size	158 in L x 90 in W x 89 in H
Estimated weight	About 9,900 lb
4-1/2 in shaft and bearings	970 lb
3 in shaft and bearings	640 lb
Offloading	Four-part sling supplied
Back tension	Yes

Compare Spooling Units by Model and Size

Match the unit to your reel: the reel must fit the maximum spool size and the full reel weight must stay within the unit capacity (70,000 lb for the RS-005, 60,000 lb for the RS-002 and RS-001).

Model	Capacity	Max spool size	Shaft	Engine	Back tension	Unit size (L x W x H) and weight
RS-005	70,000 lb	140 in dia x 126 in wide	4 in and 6 in (both included)	Detroit diesel	Yes	245 x 122 x 89 in; about 15,000 lb
RS-002	60,000 lb	120 in dia x 92 in wide	3 in and 4-1/2 in (both included)	Isuzu 4JG1T 3.1L turbo diesel	Yes	158 x 90 x 89 in; about 9,900 lb
RS-001	60,000 lb	124 in dia x 124 in wide	4 in and 6 in (both included)	Isuzu diesel	Yes	222 x 83 x 89 in; about 11,000 lb

All units hold back tension while spooling. All RS units have directional controls and an engine kill, with controls at the power unit, and come with a four-part sling for offloading. Shafts from 3 in to 6 in are available to fit your reel. Rentals are by the day, with operator options available.

Not sure which unit fits your reel? Call or email us today and we'll help you match the right spooling unit to your project.

Applications

Crane re-reeving and hoist rope changeouts

When a large crane needs new hoist or boom rope, the spooling unit holds the reel and turns it. Spool the old rope off the winch drum onto an empty reel, then pay the new rope off its reel onto the drum during re-reeving. Directional controls let you spool on or off.

Derrick barges and marine winches

Derrick barge and marine operators use our units and spooling crews to change out and respool winch rope.

Offshore and ocean tugs

Our spooling work extends offshore, including respooling the winch on an ocean-going tug.

Serving the Gulf Coast

Wet Tech mobilizes spooling units from our facility in Maurice, Louisiana across the Gulf Coast: Texas, Louisiana, Mississippi, Alabama, Florida and Georgia. Call for availability and mobilization to your jobsite.

RS-002 Spooling Unit Photos

Wet Tech spooling units on the job. Click a photo to enlarge it.

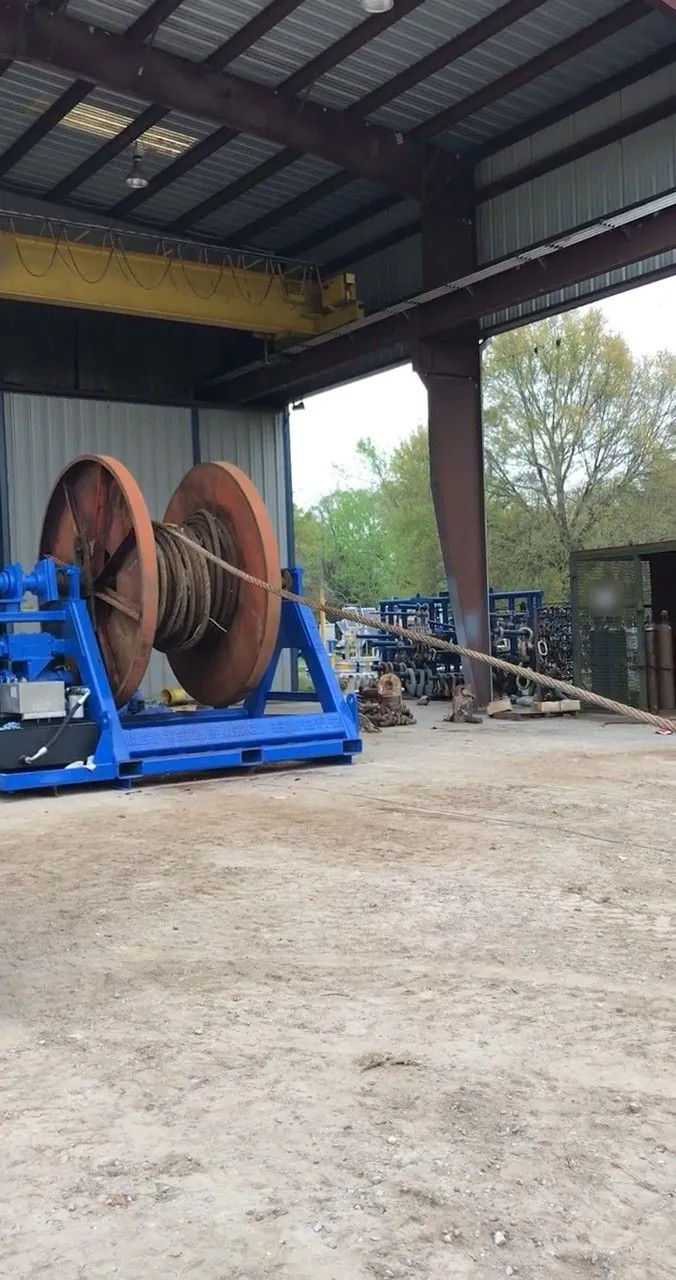

Wet Tech RS-002 spooling unit with a rust-red steel reel of wire rope inside the covered Wet Tech fab shop — Wet Tech RS-002 spooling unit spooling wire rope onto a steel reel in the Wet Tech fab shop.

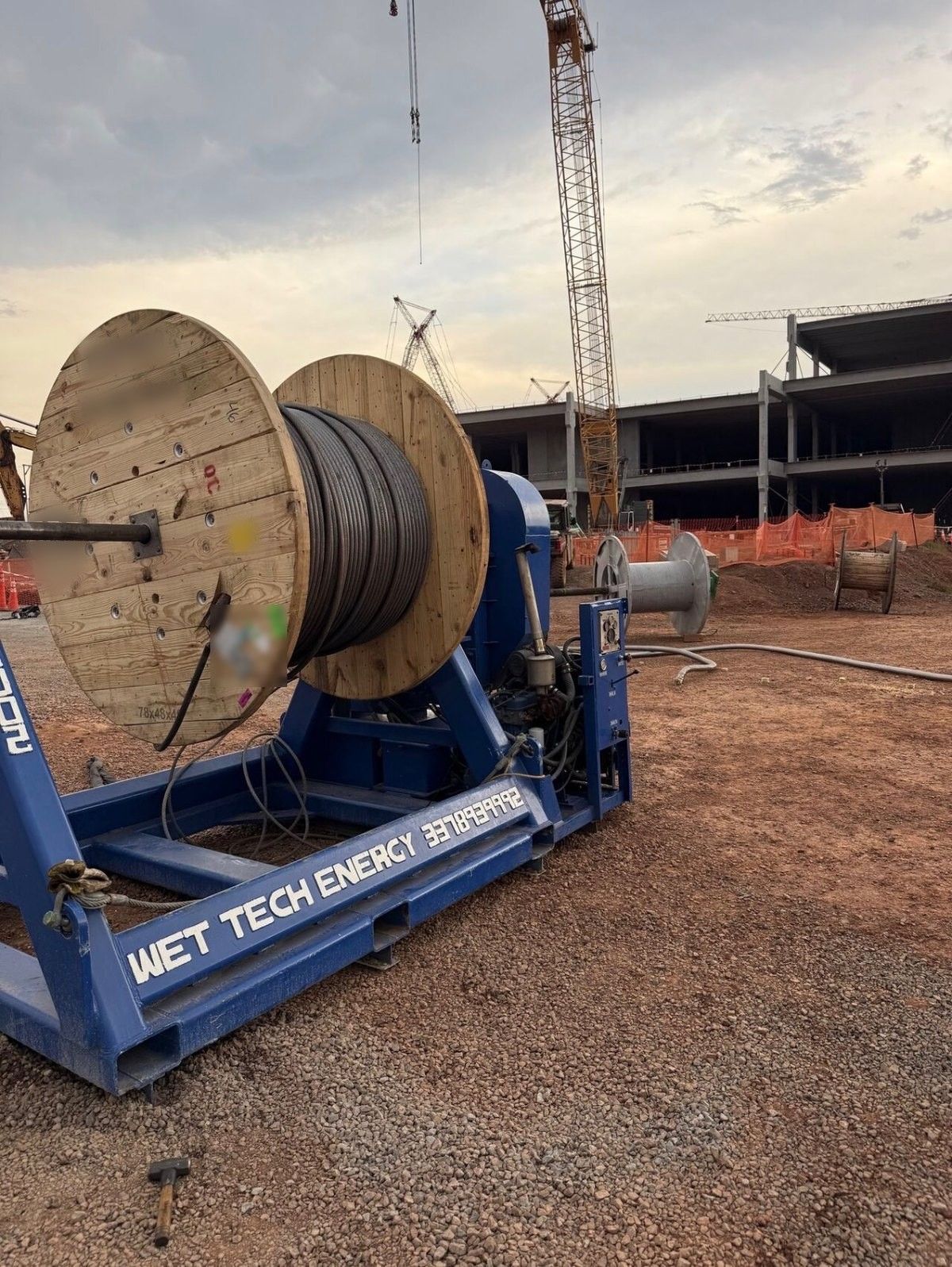

Wet Tech RS-002 spooling unit with a wooden cable reel at a construction jobsite — Wet Tech RS-002 spooling unit set up with a wooden reel on a construction jobsite.

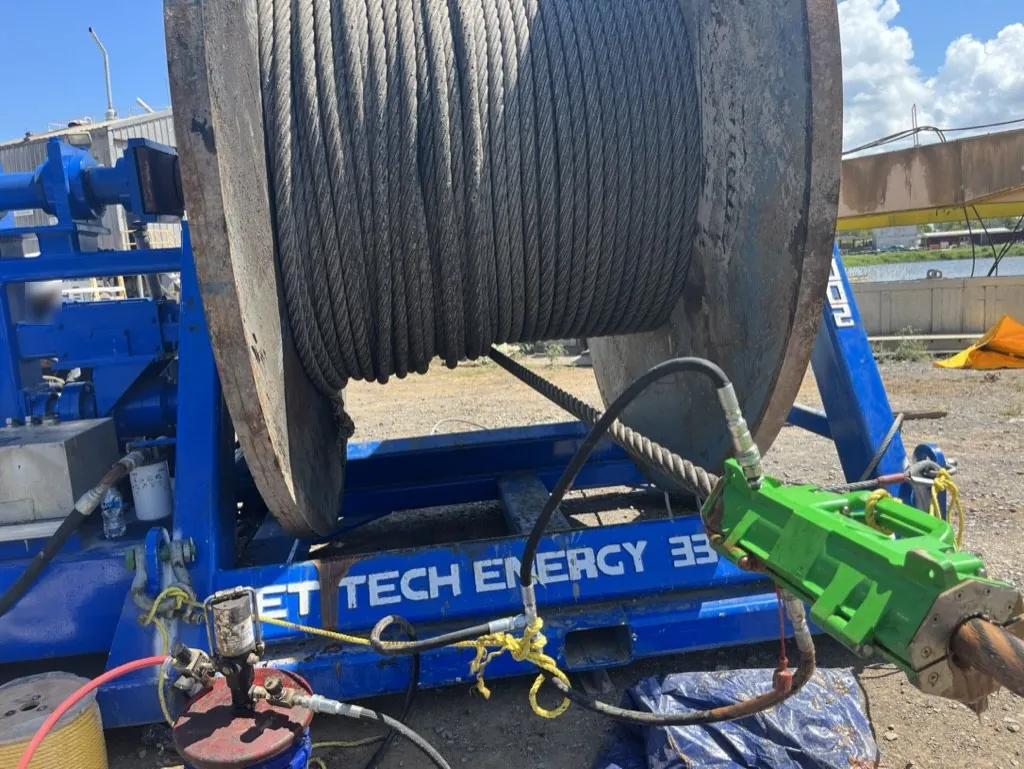

Wet Tech RS-002 spooling unit lubricating wire rope with the Viper lubrication system, a green lubricator clamped on the rope as it spools off a steel reel — Wet Tech RS-002 spooling unit lubricating wire rope with the Viper lubrication system.

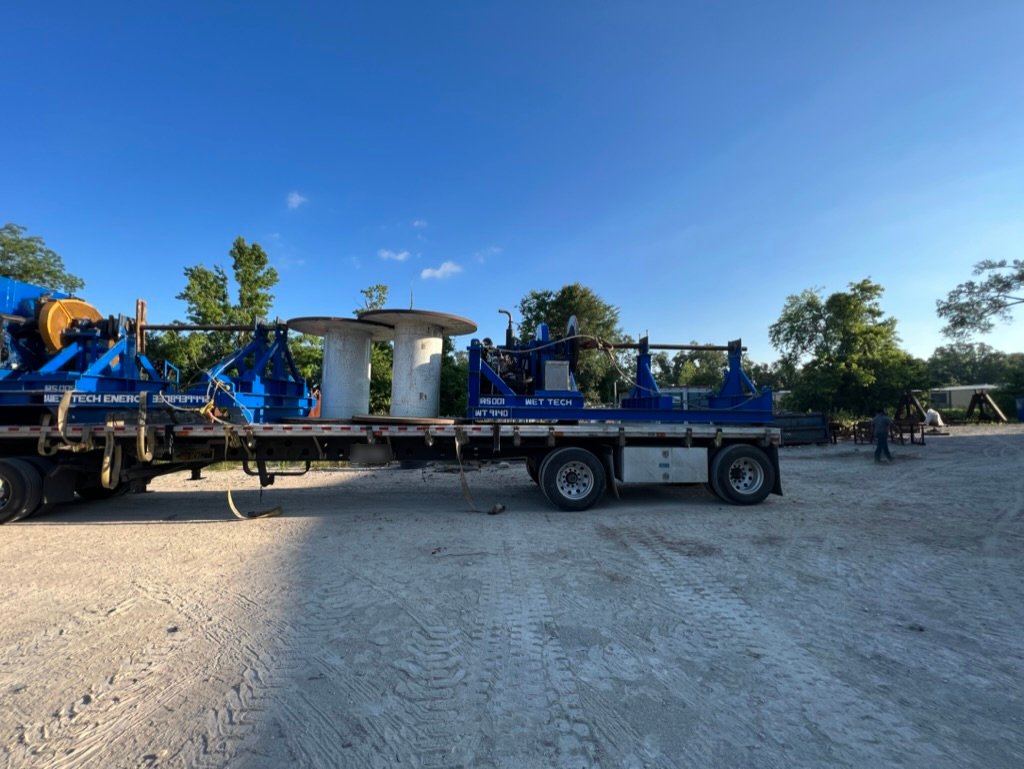

Wet Tech RS-005 and RS-002 wire rope spooling units with steel reels on a flatbed trailer — Wet Tech RS-005 and RS-002 spooling units with steel reels on a flatbed, heading out to a job.

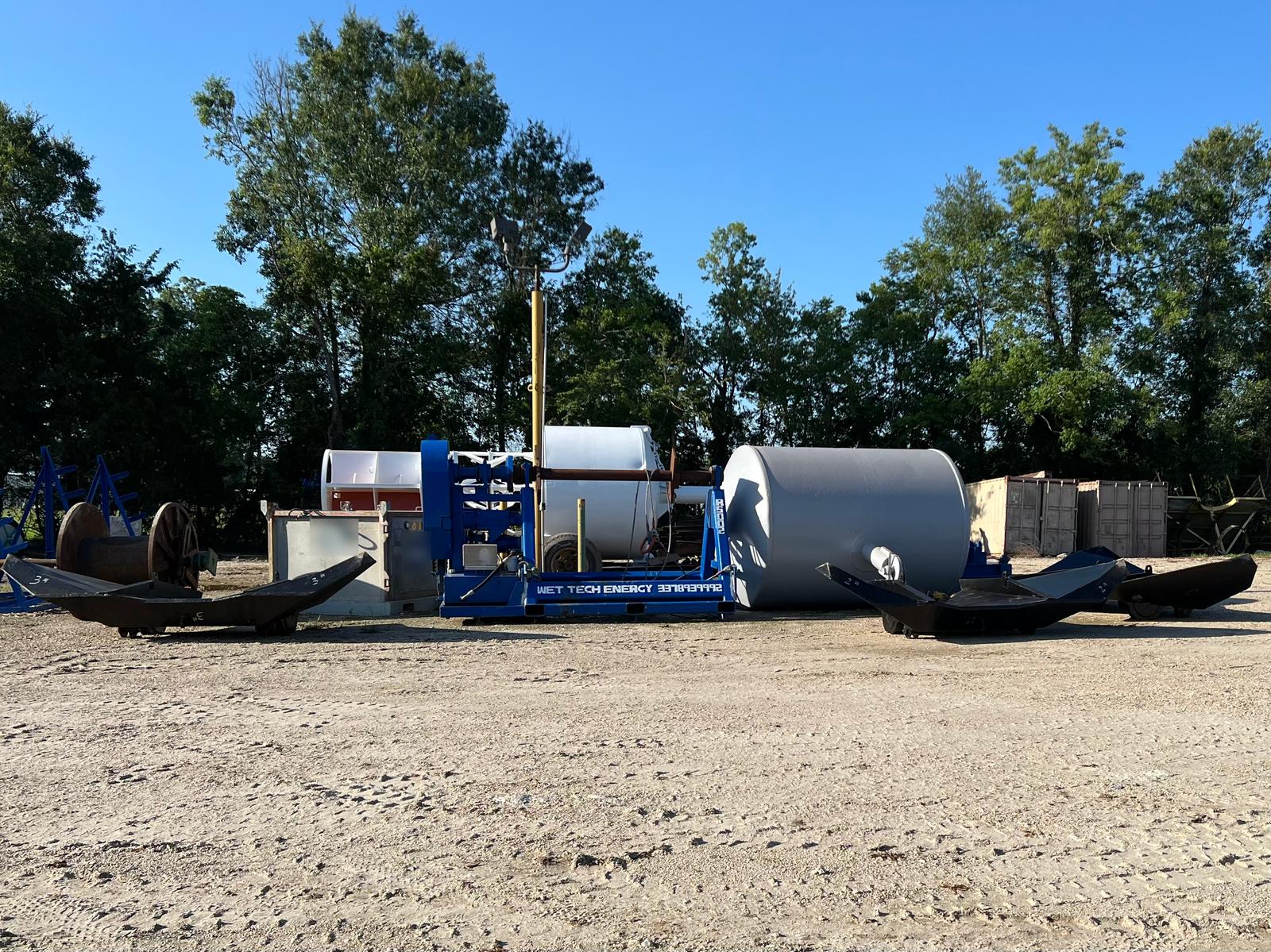

Anchors, the Wet Tech RS-002 spooling unit, a grey steel mooring buoy and a white smart buoy staged in the Wet Tech yard — A Wet Tech mooring job ready to ship: anchors, the RS-002 spooling unit, an 8 ft x 10 ft mooring buoy and an 8 ft x 26 ft white smart buoy, ready to deploy.

See all spooling unit rentals or our wire rope spooling services.

Spooling Unit FAQ

Is the RS-002 a hydraulic spooling unit?

Yes. The RS-002 is a hydraulic spooling unit driven by a diesel hydraulic power unit (HPU).

Is the RS-002 a mobile spooling unit?

Yes. The skid-mounted RS-002 is a mobile spooling unit that mobilizes from Maurice, Louisiana to your jobsite.

Does the RS-002 hold back tension?

Yes. The RS-002 holds back tension while spooling.

Do you rent wire rope A-frames?

Yes. We rent wire rope A-frames: spooling A-frames, or reel stands, that hold a reel of wire rope on a shaft so the rope can pay off or take up. They are for spooling wire rope, not launch and recovery systems (LARS). Call 337-893-9992 or email sales@wettechenergy.com for availability.

Get a Spooling Quote

Call 337-893-9992 or email sales@wettechenergy.com with your crane, rope and reel details, jobsite and dates.
